J-001-C
SOJET
| VIDEO OF AUTOMATIC PILLOW PRODUCTION LINE | | |

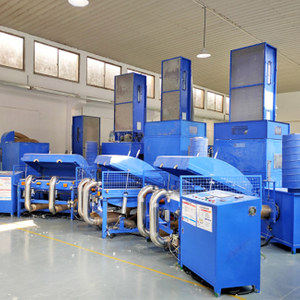

| PILLOW FILLING LINE |   | The automatic pillow production lines include capacities ranging from 200 to 680 pillows per hour, with a single operator and a high-quality final product. These innovative pillow filling production lines can be completely automatic, semi-automatic or manual, depending one the customers' actual requirement Suitable for hcs fiber 0.7d~15d, 32-64mm (staple fiber & microfiber) Power:16.75 Kw Capacity:300~350 pcs/hour Fiber opening rate: 98% Pillow weight: 300g-1500g Max. pillow size: 940x1150mm Filling thickness: 175-250mm Voltage: 380V,50Hz, three-phase Certificate: CE Machine weight: 3800 kgs Dimensions (L*W*H): 8000x3500x2500mm |
| SUITABLE TYPES OF FIBERS FOR FILLING |  | |
| FEATURES OF PILLOW FILLING LINE | One Operator This J-001-C pillow filling machine is easy to operated and controlled by only one person through PLC programming system , which will be automatically loaded raw materials, fiber carding, and filling. |  |
| Automatic Bale Opener The feeder can store up to 300kg polyester fiber, microfiber, kapok, cotton, etc. It transport the raw materials with conveyor belt and it can be controlled on the control box. |  | |
| Add raw materials to opener The original fibers are opened efficiently, the fibers are more fluffy, the pillow is more even and smooth, and the elasticity is better. |  | |
| Lid opens automatically After filling is completed, the filling machine cover will automatically open and the pillow will be taken out. The filling process is completed in one go. |  | |
 | ||
| EXAMPLES OF FINAL PRODUCTS |  | |
| VIDEO OF AUTOMATIC PILLOW PRODUCTION LINE | | |
| PILLOW FILLING LINE | | The automatic pillow production lines include capacities ranging from 200 to 680 pillows per hour, with a single operator and a high-quality final product. These innovative pillow filling production lines can be completely automatic, semi-automatic or manual, depending one the customers' actual requirement Suitable for hcs fiber 0.7d~15d, 32-64mm (staple fiber & microfiber) Power:16.75 Kw Capacity:300~350 pcs/hour Fiber opening rate: 98% Pillow weight: 300g-1500g Max. pillow size: 940x1150mm Filling thickness: 175-250mm Voltage: 380V,50Hz, three-phase Certificate: CE Machine weight: 3800 kgs Dimensions (L*W*H): 8000x3500x2500mm |
| SUITABLE TYPES OF FIBERS FOR FILLING | | |
| FEATURES OF PILLOW FILLING LINE | One Operator This J-001-C pillow filling machine is easy to operated and controlled by only one person through PLC programming system , which will be automatically loaded raw materials, fiber carding, and filling. | |
| Automatic Bale Opener The feeder can store up to 300kg polyester fiber, microfiber, kapok, cotton, etc. It transport the raw materials with conveyor belt and it can be controlled on the control box. | | |
| Add raw materials to opener The original fibers are opened efficiently, the fibers are more fluffy, the pillow is more even and smooth, and the elasticity is better. | | |
| Lid opens automatically After filling is completed, the filling machine cover will automatically open and the pillow will be taken out. The filling process is completed in one go. | | |
| ||
| EXAMPLES OF FINAL PRODUCTS | | |
